Supermix Hydraulic Agitator
"SUPERMIX" hydraulic agitator

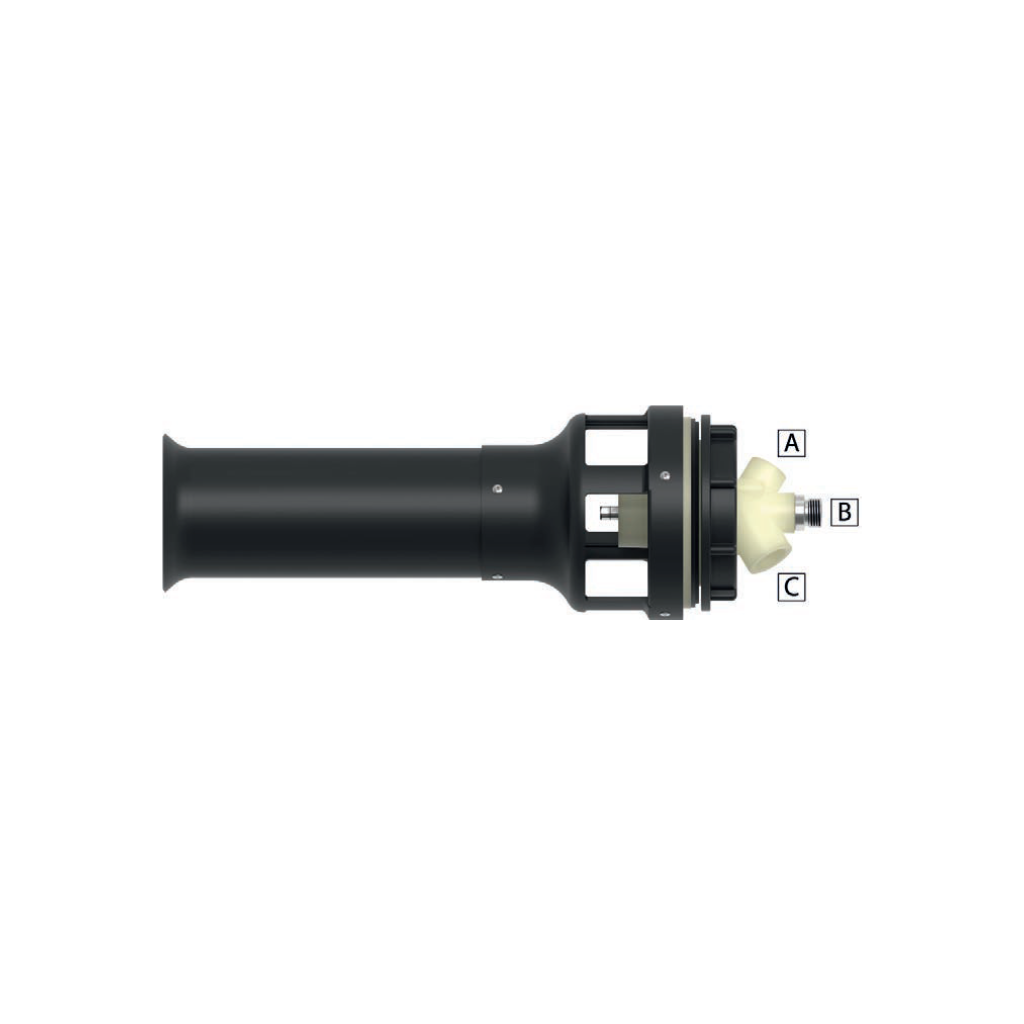

The SUPERMIX body contains three circuits:
- Pressure
- Return
- Product injection, additional pump or air mixing
Circuit A: PRESSURE
By using the working pressure, the mixing power
of SUPERMIX is greater than the performance
of traditional systems, ensuring a flow rate of
300 to 1300 l/min. depending on the pump and
nozzle used. Graph “A2” illustrates consumption,
while graph “A1” shows the corresponding
performance values using nozzles with diameter
1.5 - 2 - 2.5 - 3 mm.
Circuit B: RETURN
This circuit utilises the pump return flow during
limit, control and tank filling operations, when
all the pump delivery fluid passes through
the circuit. Recommended for low-pressure
treatments, average and low volumes,
pneumatic systems and spraying.
Graph “B2” illustrates the residual pressure in
the circuit at various flow rates, while graph
“B1” shows the corresponding performance
values without a nozzle and using nozzles with
diameter 13 - 15 - 17 mm.
- Can be adapted to various tank shapes
- Double Venturi circuit to increase efficiency and reduce water consumption
- Threaded G ½ connector for simple installation on tank
- Suitable for low pressure (nozzles Ø 5-7-9- mm) or high pressure (nozzles Ø 2-3 mm) operation
- Polypropylene body
