K-Type Boomless Spray Nozzles & Kits

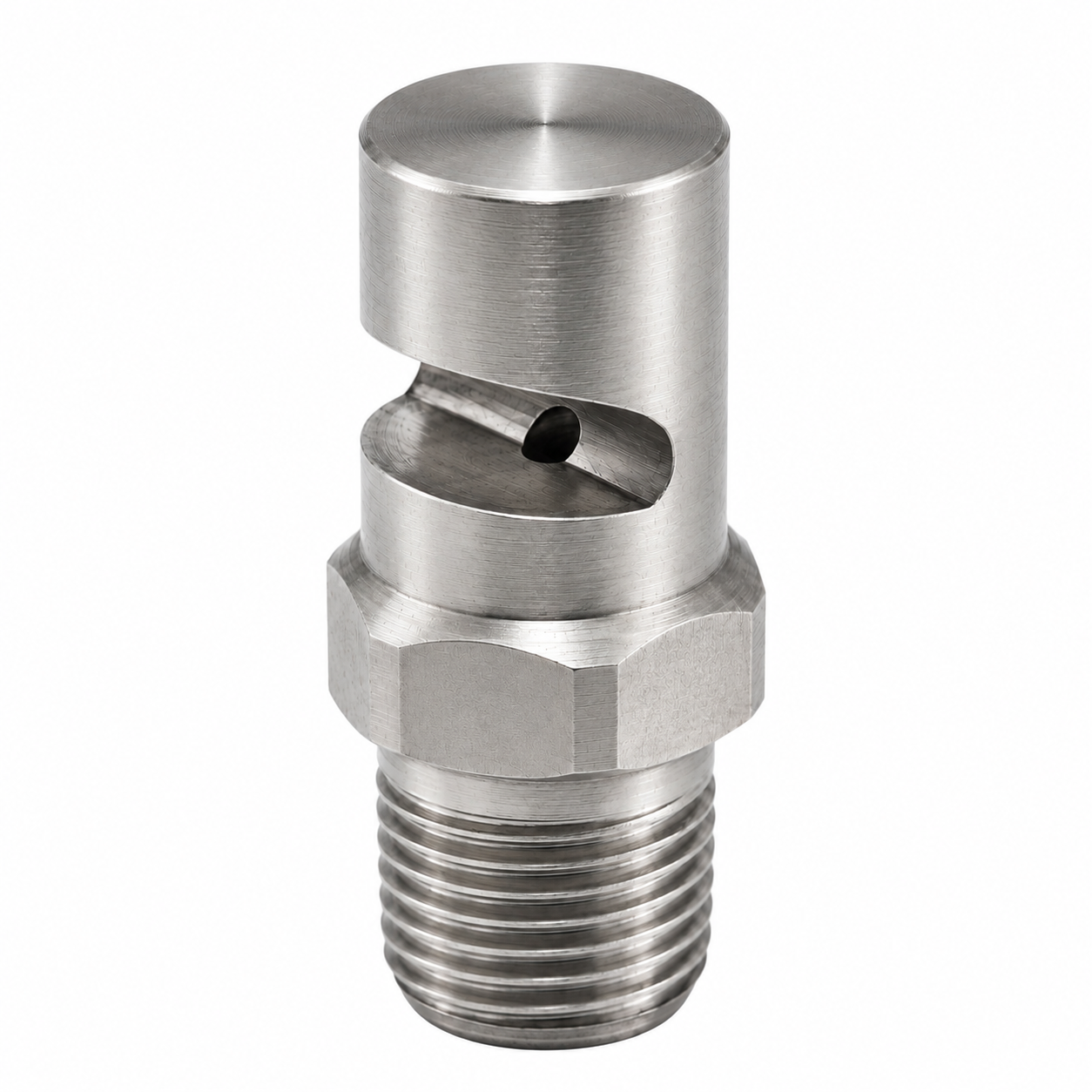

K-Type Boomless Spray Nozzles provide wide spray coverage without the need for a conventional spray boom. Designed for agricultural, horticultural and general spraying applications, they are available as individual K-Type jets or as complete boomless spray kits with the required mounting and plumbing components.

Manufactured in brass or stainless steel, the range includes multiple nozzle sizes to suit different flow and coverage requirements.

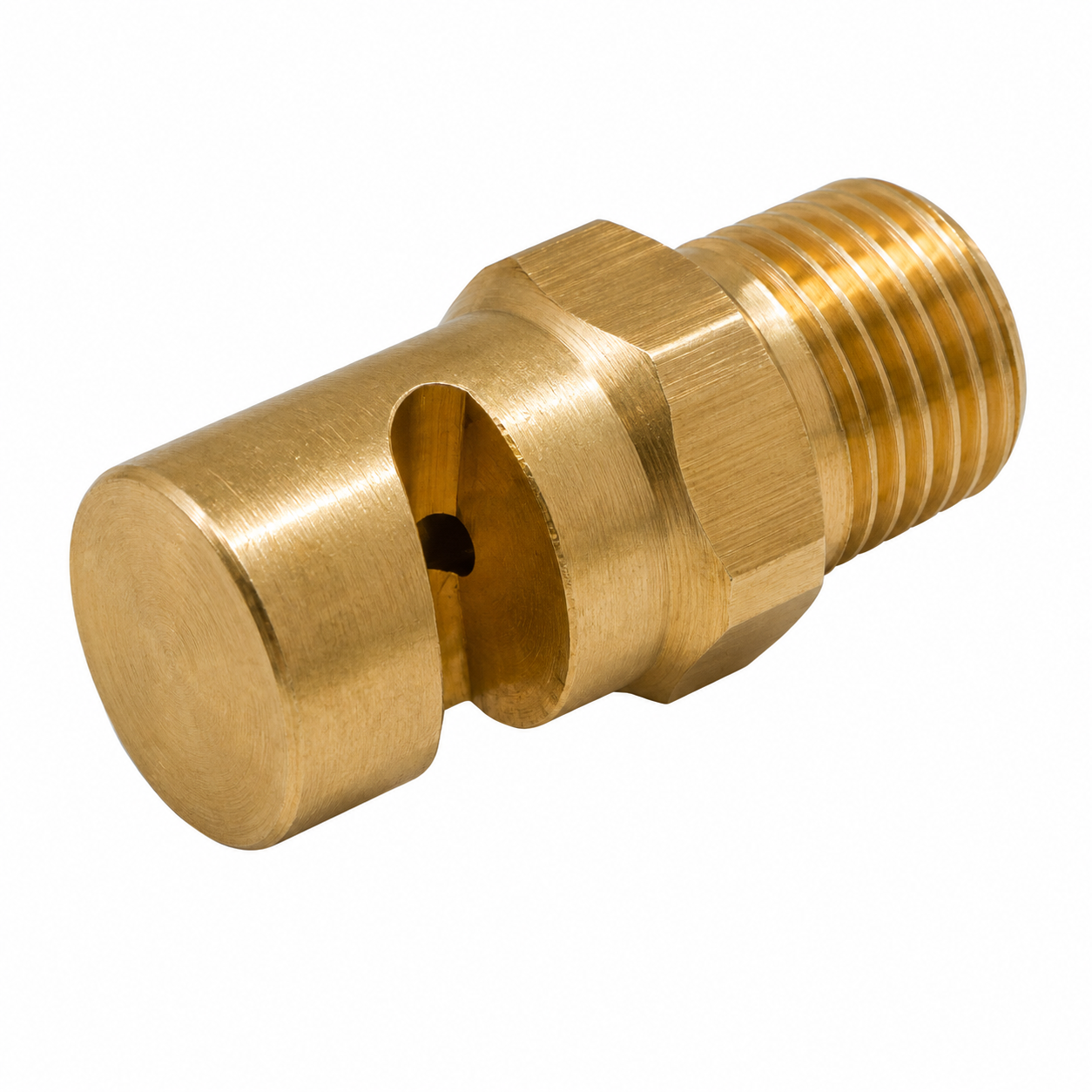

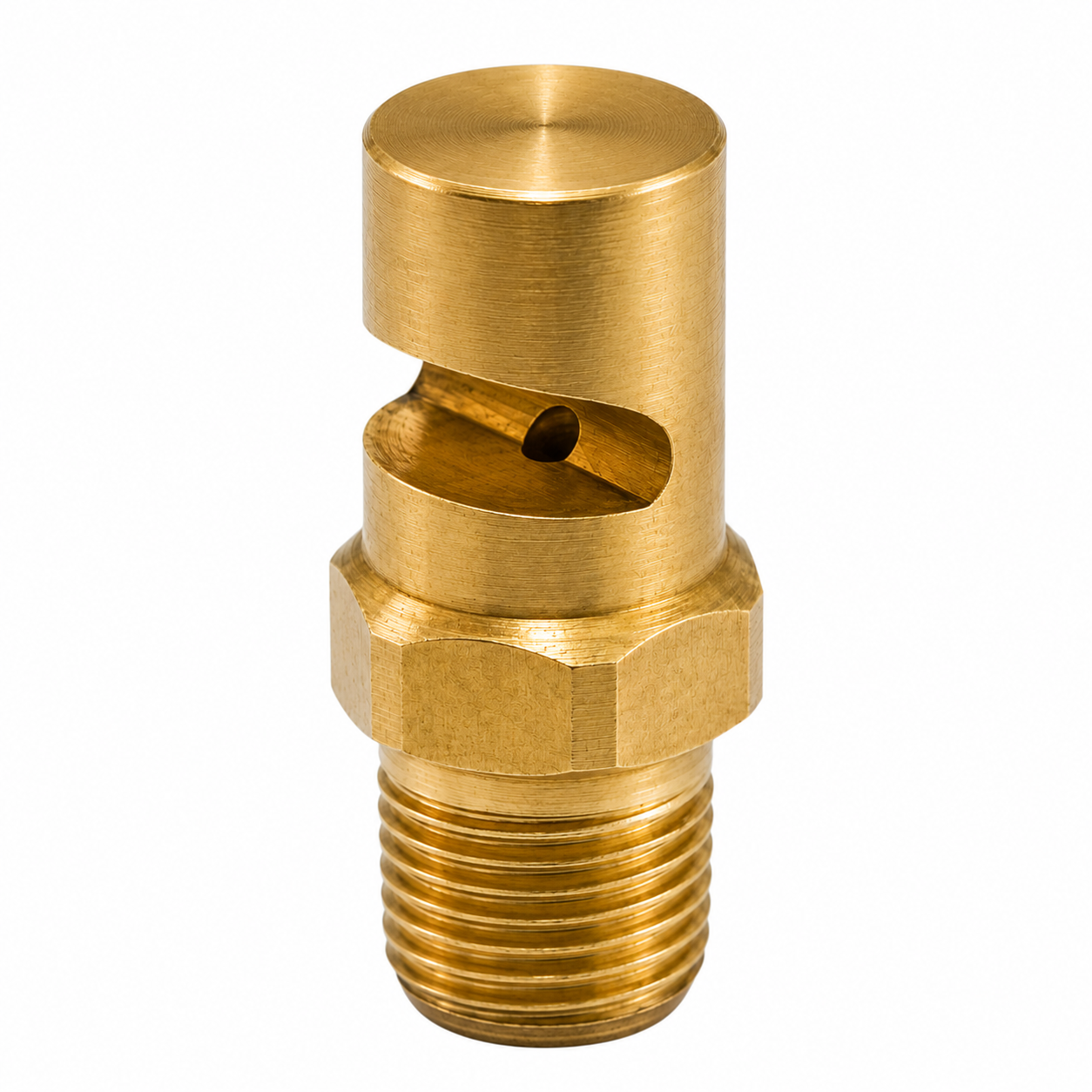

K-Type Jet Options:

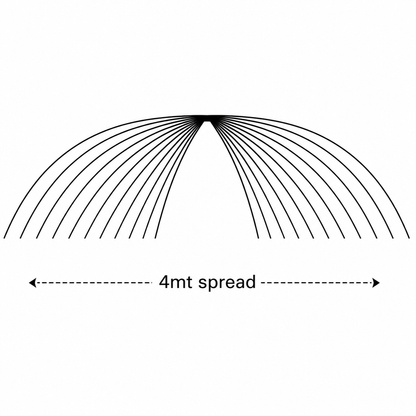

• 1/8" Thread – 1.2 mm nozzle, 5 LPM, 140° spray angle @ 50 PSI
• 1/4" Thread – 2.0 mm nozzle, 9 LPM, 140° spray angle @ 60 PSI
• 1/2" Thread – 3.2 mm nozzle, 14 LPM, 125° spray angle @ 60 PSI
• 3/4" Thread – 4.0 mm nozzle, 20 LPM, 140° spray angle @ 60 PSI

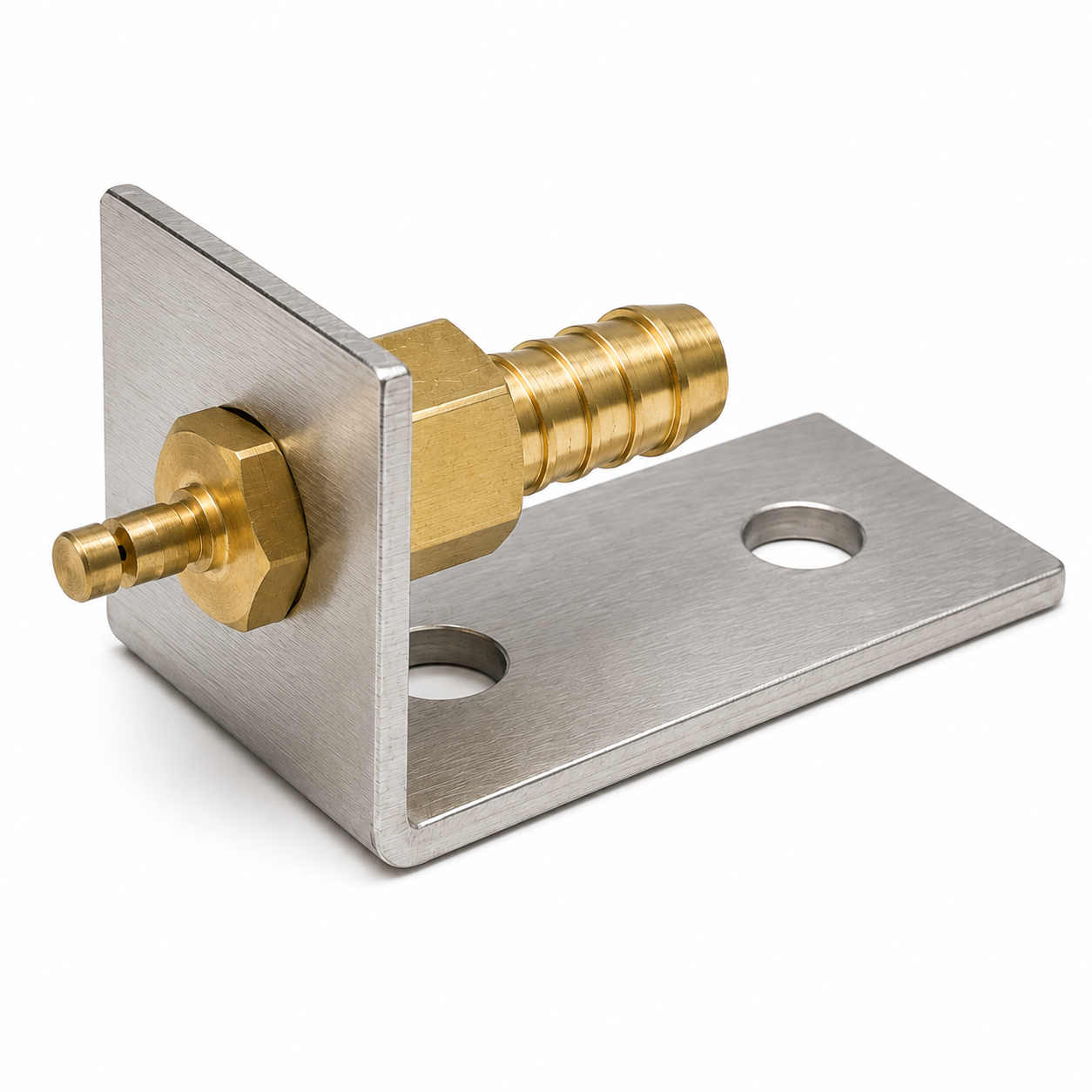

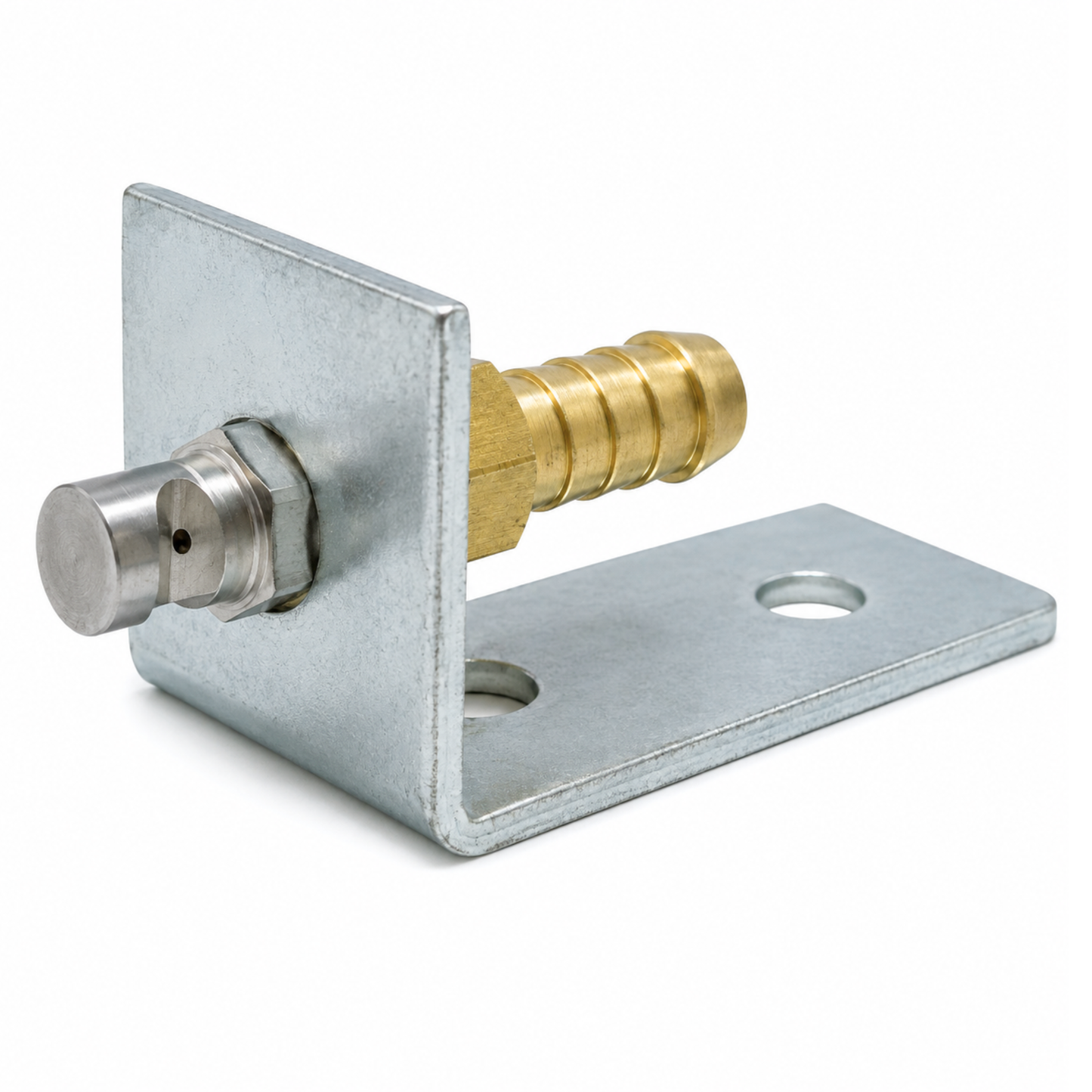

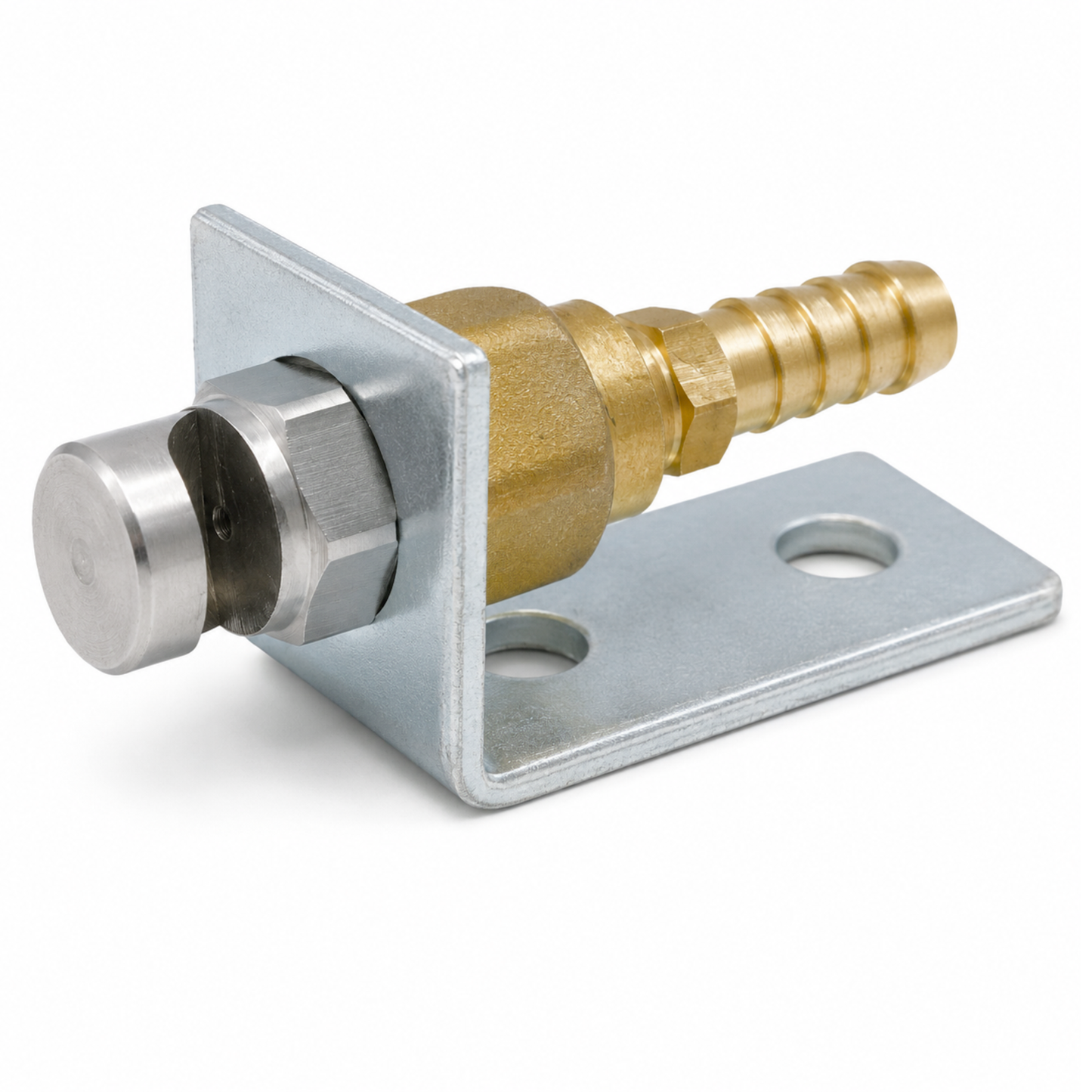

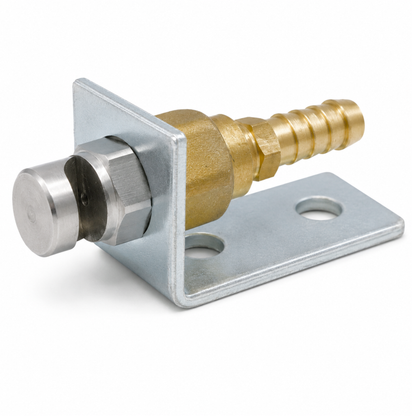

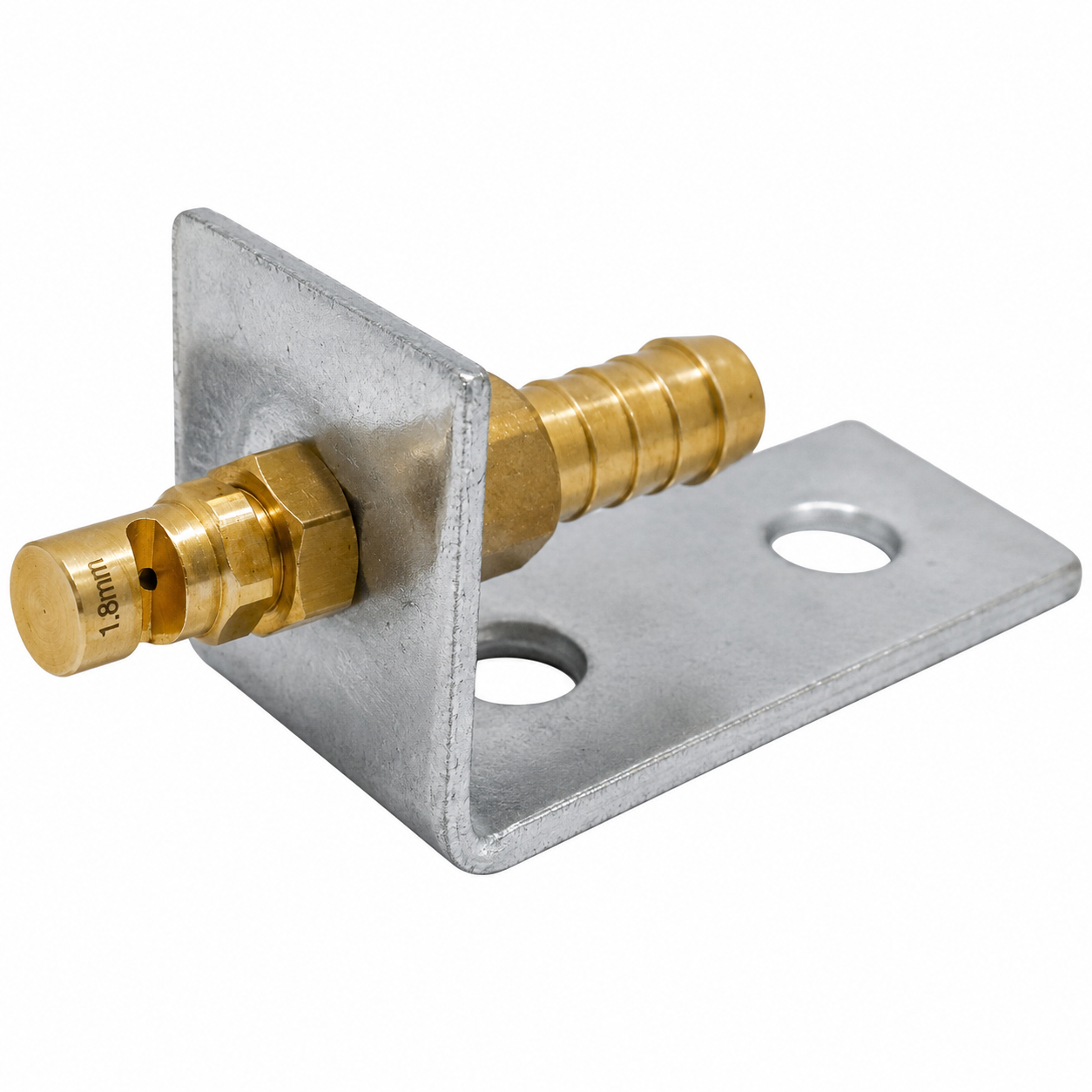

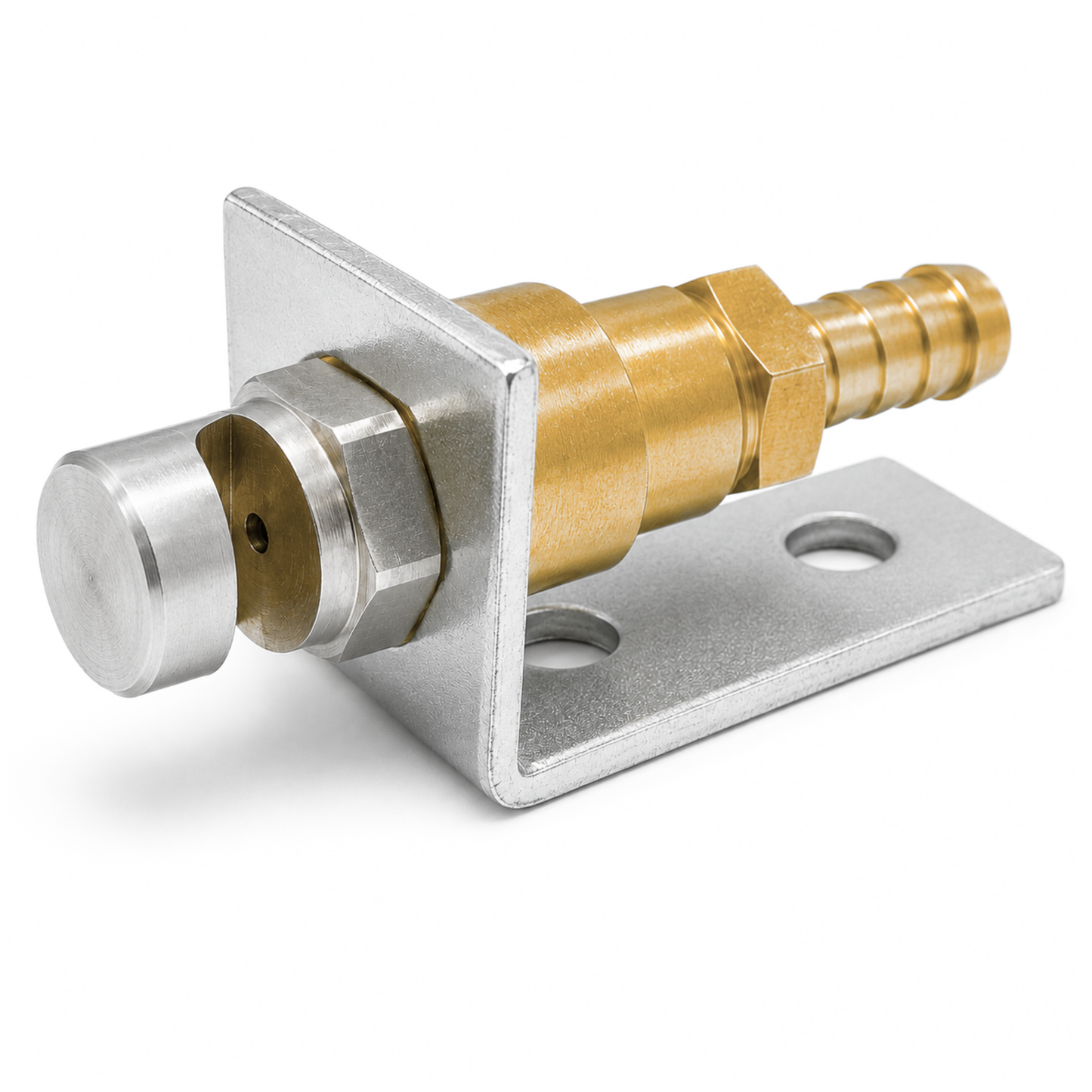

Complete Boomless Spray Kits are also available for each K-Type jet configuration. Depending on the selected size, kits include the appropriate:

• Mounting plate
• 15 mm hose barb
• Reduction bush or socket where required
• K-Type boomless spray nozzle

Ideal for applications where a compact, simple and wide-coverage spraying solution is required.
