Hydraulic Motor 15 HP to 380 RPM max. BMP 200 Charlin Design
Hydraulic Motor 15 HP to 380 RPM max. BMP 200 Charlin Design
Hydraulic Motor 15 HP to 380 RPM max. BMP 200 Charlin Design
Hydraulic Motor 15 HP to 380 RPM max. BMP 200 Charlin Design

Hydraulic Motor 15 HP to 380 RPM max. BMP 200 Charlin Design

Tax included. Shipping calculated at checkout.

Hydraulic Motor 15 HP to 380 RPM max. BMP 200 Charlin Design

THIS ITEM IS SENT BY FREIGHT OR COURIER ONLY, SELLER WILL CONTACT YOU FOR CALCULATED RATES

Price does NOT include freight, seller will contact you with shipping costs.

This new hydraulic motor has long been available on the Australian market and proved to be reliable in applications such as: Augers, cleaner brooms, fans etc and is applied with minimum fuss.

  • To be used for replacing your PTO with a hydraulic coupling
  • KW 12
  • Max speed 390 RPM (Continuous to 310 RPM)
  • Max Torque N*m 540
  • Max KW output 12
  • Max pressure drop 19.5 MPA
  • Max flow litres/min 70
  • Weight 6.6 KG

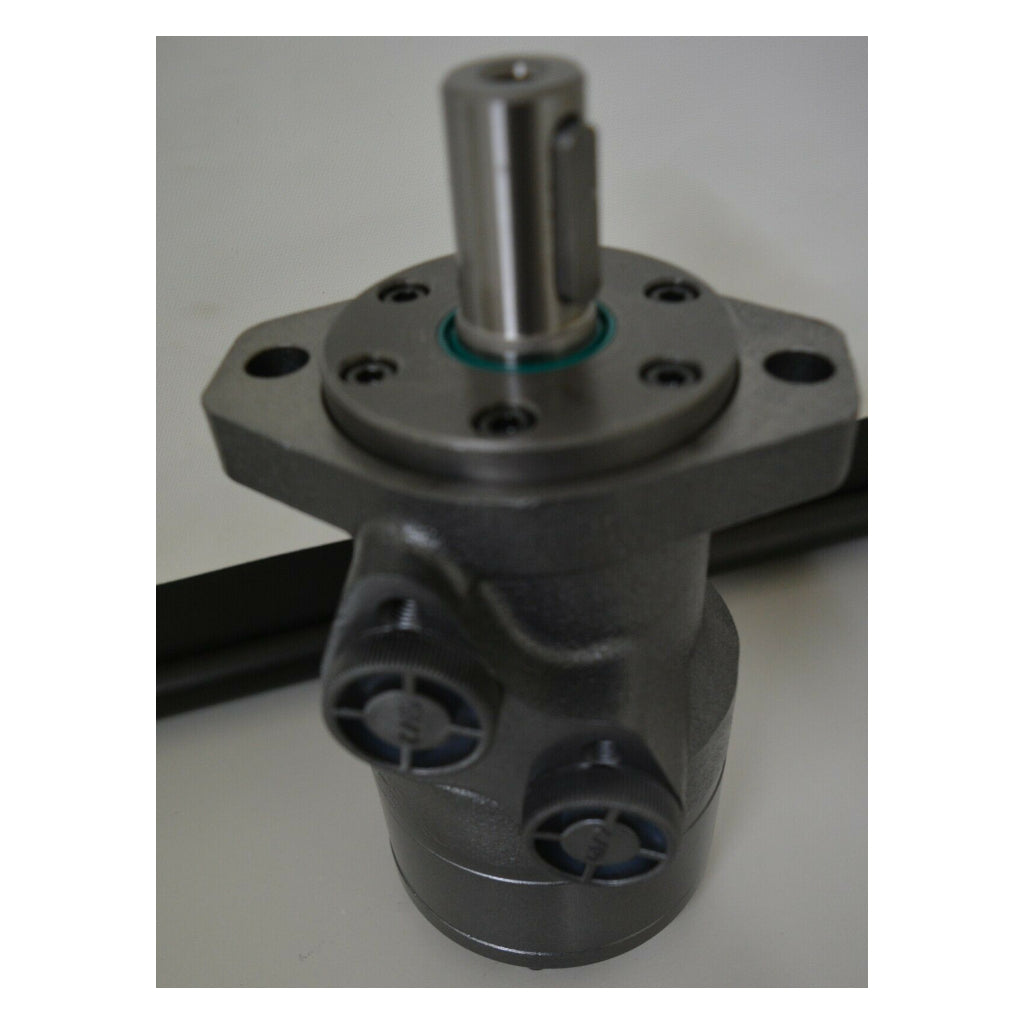

  • Shaft size 25 mm diameter with standard key way
  • Mounting holes at 106.4 mm centres
