Heat Exchanger for Swimming Pools Shell and Tube Design

Heat Exchanger for Swimming Pools Shell and Tube Design

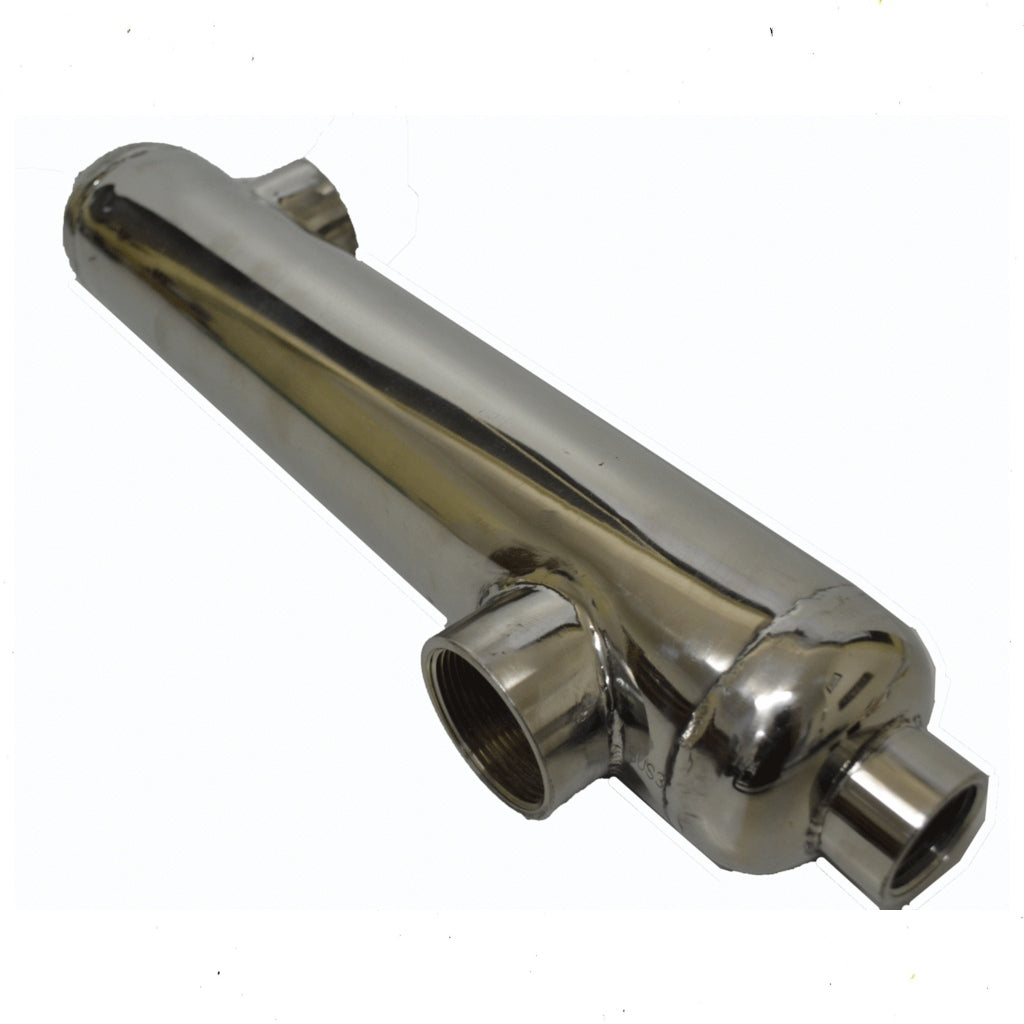

Alpha shell and tube heat ex-changers are sold all over the world for solar pool heating systems or boiler pool heaters.

Instead of placing chlorine or salt directly thru the panels utilise this external device for greater robust system design.

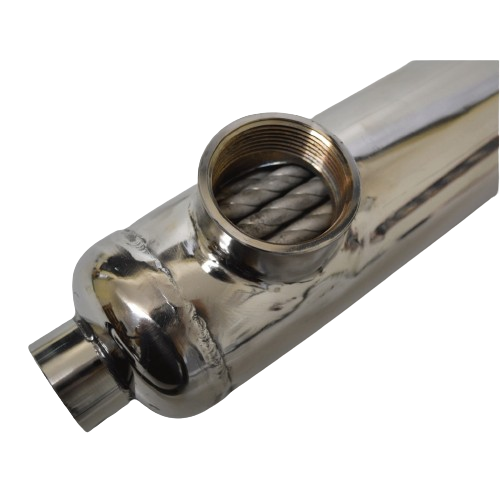

• Stainless steel tube design (twisted)
• High velocity capability.
• Stainless steel shell and tubes.
• Temperature to 208 degrees Celsius.
• Pressures to 190 psi.
• Pool capacity of 12000 us gallons.
• 155 Btu.
• BSP threads 1 inch and 11/2"
• 414 mm overall long and 75 mm diameter.
• 88 kw/hr.
