Aluminium Alloy Duckbill Spray Nozzles

Designed for watering carts, these duckbill spray nozzles deliver a consistent flat fan pattern ideal for wetting applications. Engineered for low-pressure, high-flow performance, they provide efficient and even coverage. Available in three size options to suit a range of requirements.

Key Features

• Flat fan spray pattern
• Suitable for watering carts and flushing applications
• Optimised for low pressure, high flow spraying
• Durable aluminium alloy construction

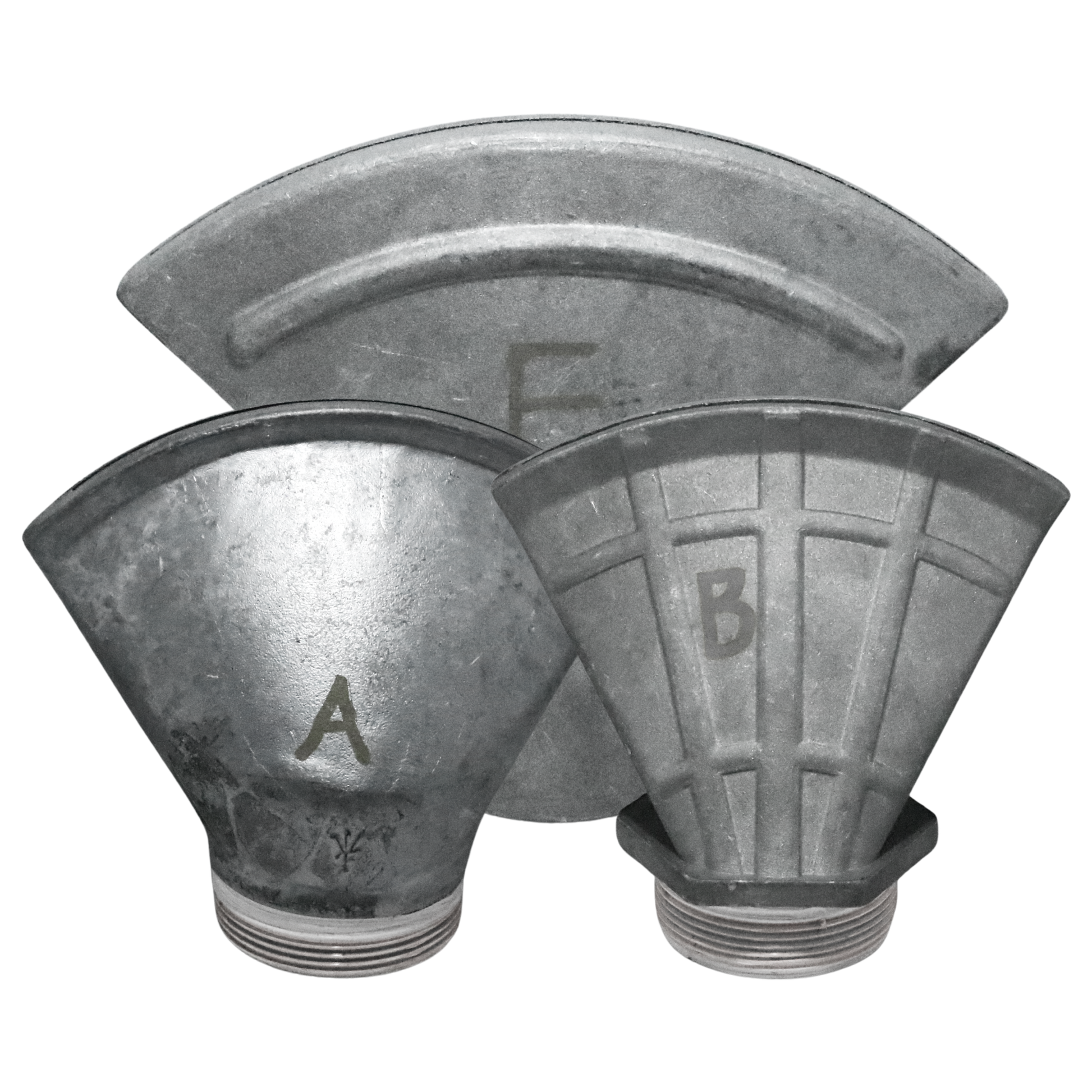

• Available in three size configurations

Specifications

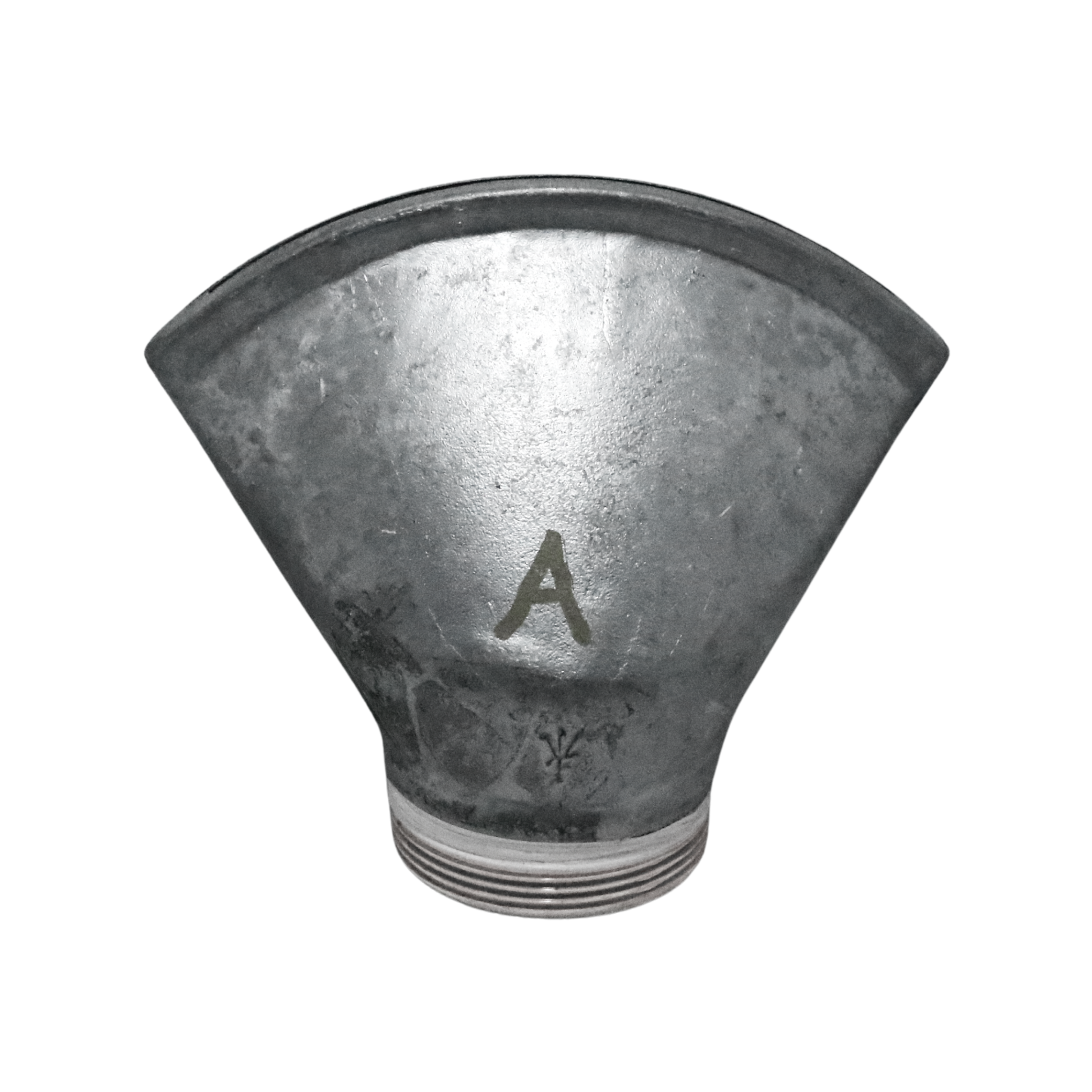

Option A

• Thread: 2" Male
• Dimensions: 130mm (L) × 150mm (W) × 2" (H)
• Spray Pattern: Flat Fan
• Flow Rate: 182 LPM @ 20 PSI
• Weight: 1kg

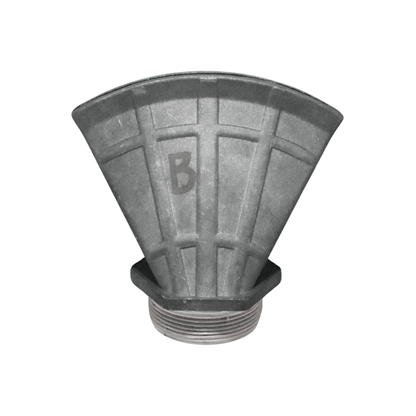

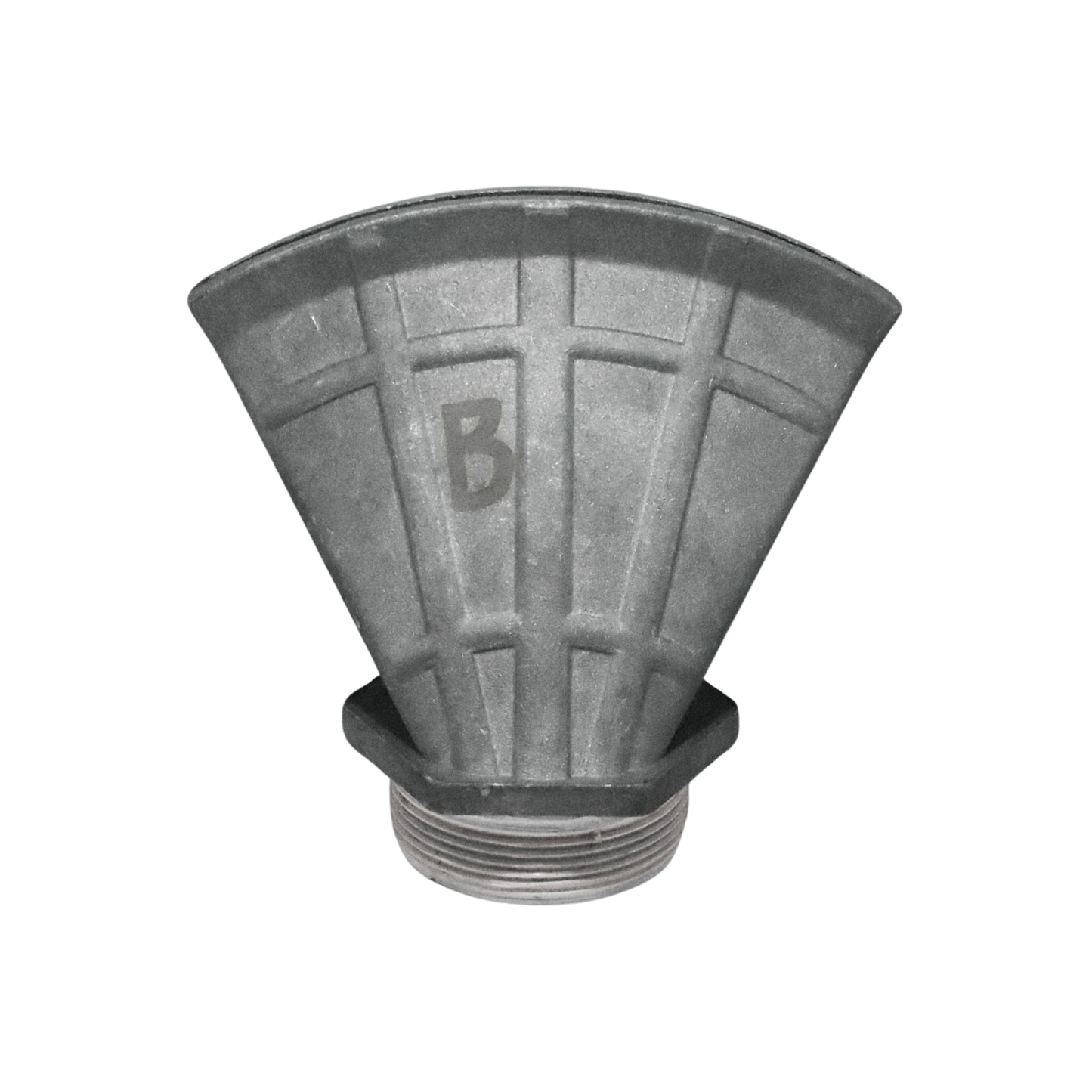

Option B

• Thread: 2" Male
• Dimensions: 130mm (L) × 140mm (W) × 2" (H)
• Spray Pattern: Flat Fan
• Flow Rate: 150 LPM @ 20 PSI
• Weight: 1kg

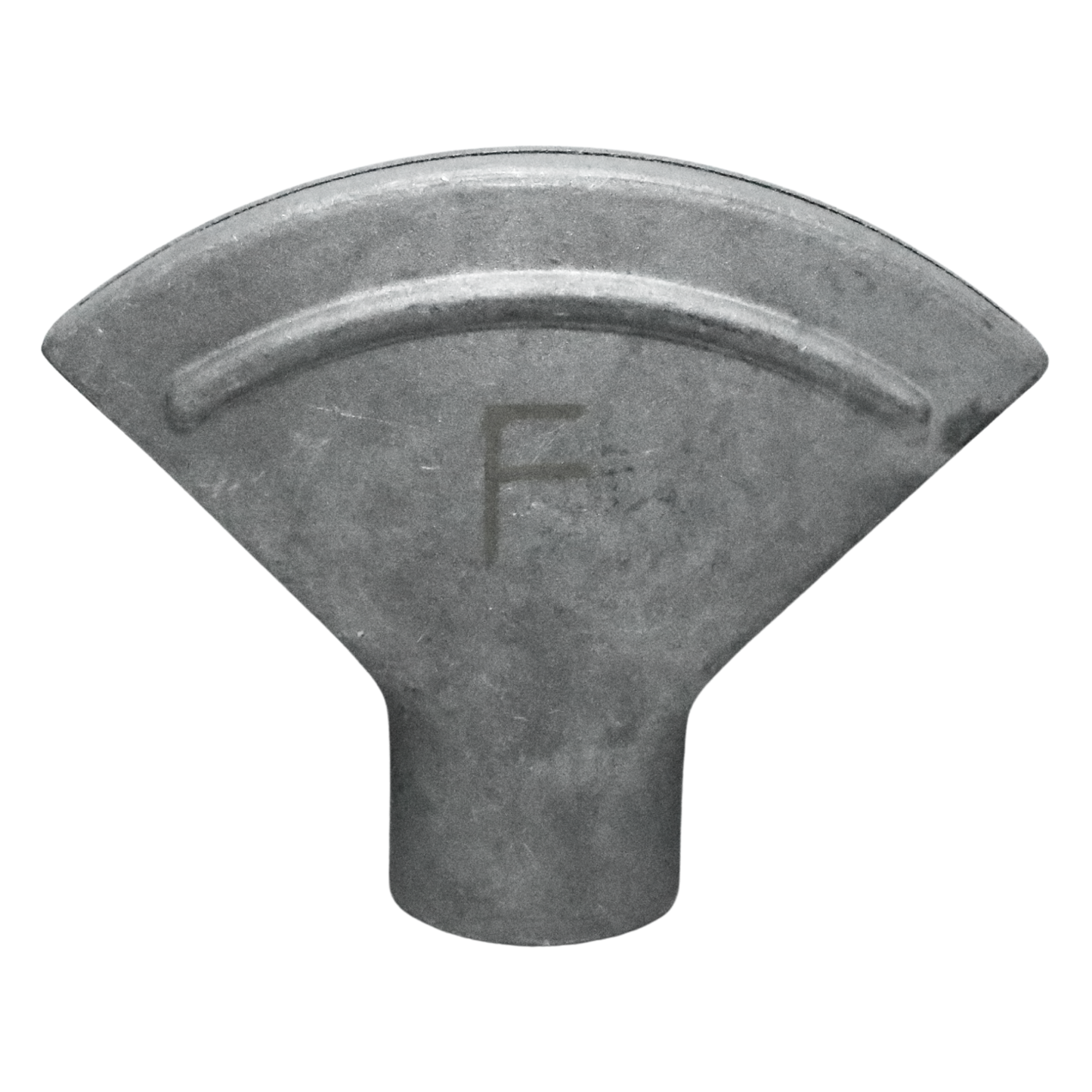

Option F

• Thread: 1.5" Female
• Dimensions: 155mm (L) × 195mm (W) × 2" (H)
• Spray Pattern: Flat Fan
• Flow Rate: 230 LPM @ 15 PSI
• Weight: 1kg
